amp channel switcher pedal True Bypass Looper – Looper and Amp Channel Selector v2 – Bright Onion PedalsPlease note this is not a phrase or sample looper pedal where you can record your guitar and then play over the loops. Here's a single true bypass loop with an additional switch to select channels (for amps accepting latching channel switching). The loop footswitch activates the loop whilst the second switch changes your amp's channel, due to the spacing of the switches you can also do both with one stomp. There is a polarity switch to ensure the

Please note this is not a phrase or sample looper pedal where you can record your guitar and then play over the loops.

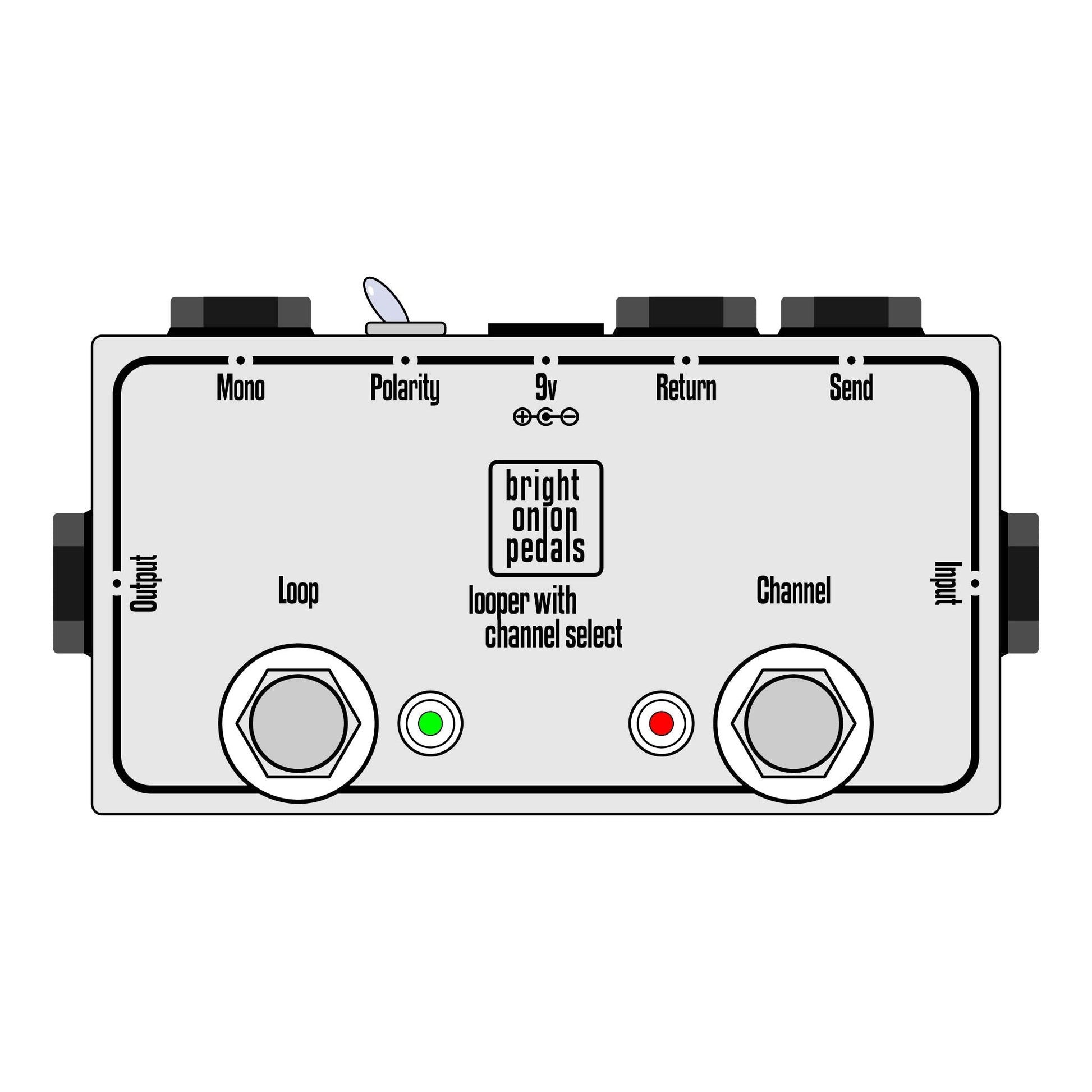

Here's a single true bypass loop with an additional switch to select channels (for amps accepting latching channel switching). The loop footswitch activates the loop whilst the second switch changes your amp's channel, due to the spacing of the switches you can also do both with one stomp. There is a polarity switch to ensure the correct LED status is selected for the channel footswitch.

The channel select socket comes with a mono version as this is the most commonly used, I can use a stereo socket and wire it the ring if needed, please contact me if this is required.

The pedal is totally passive. If you need to power the status LEDs the pedal has a Boss style 2.1mm 9v DC socket.

• Aluminium enclosure
• Neutrik plug sockets
• 3PDT heavy duty footswitches
• Point to point wiring
• LEDs
• 2.1mm centre negative 9v DC socket

Enclosure dimensions:

110x60x31mm
